Apple mobile phone Breath Android i OS 2 in 1 Alcohol Tester

FOB Reference Price:Get Latest Price
  • 100 - 999 Pieces
    US $7.60
  • 1000 - 4999 Pieces
    US $6.70
  • 5000 - 9999 Pieces
    US $6.00
  • >=10000 Pieces
    US $5.80
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
GP7070
Certification:
CE,ROSH,FCC
Background light:
green,yellow,red
Product Color:
Black
Power supply:
by mobile phone

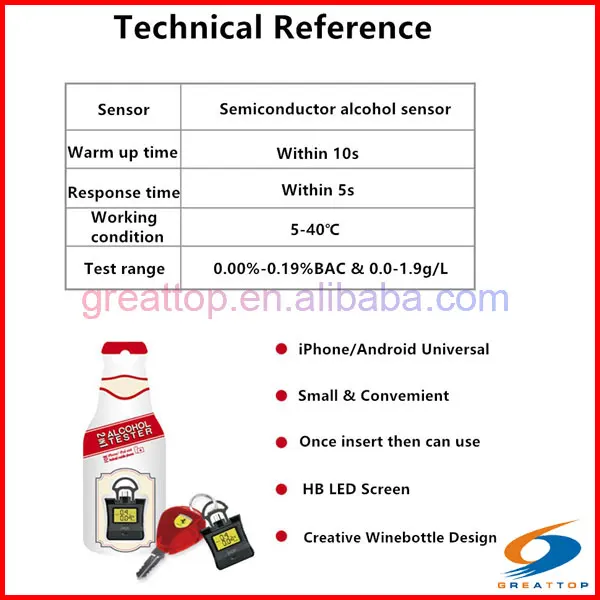

Sensor:
semiconductor alcohol sensor
Unit size:
45*42*12mm
Warm-up time:
whitin 10 seconds
Response time:
5 seconds
Material:
ABS
LCD Indication:
Direct Testing Process LCD Indication
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Unit size: 45*42*12mm
QTY/CTN:200pcs
N.W: 6kg,
G.W: 6.7kg
Carton Size: 42*35*23cm
Port
SHENZHEN OR HK
Lead Time :
5 days

Apple mobile phone Breath Android  i OS 2 in 1 Alcohol Tester

Introduction:

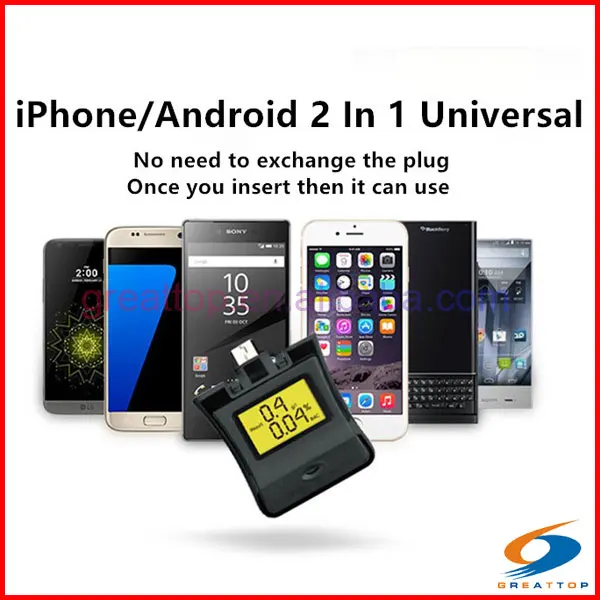

 This product is a 2 in 1 color alcohol tester designed for both Apple and Android devices. It's small, exquisite and delicate design, it is so easy  to carry!

1.Adopting new gas detection  technology, it  can detecting the alcohol content of gas more accurately.

2. LCD digital display and colour backlight screen can make detection more ocular &more efficient

3.With unique detector ,which can effectively identify cigarettes, coke,coffe smells and prevent non alcohol gas

 to interfere the detecting result.

4.with voice alarm function,when alcohol content is excess,the buzzer will alarm automatically alert

5. It is powered by Smart phone , just connect it to Smart phone for use.

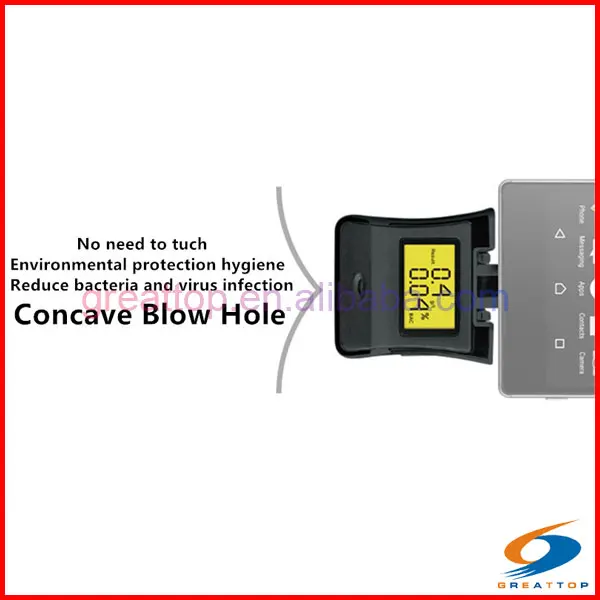

6.No need to use blowpipe, just blow into air hole, this way is healthy and clean.



User Manual:

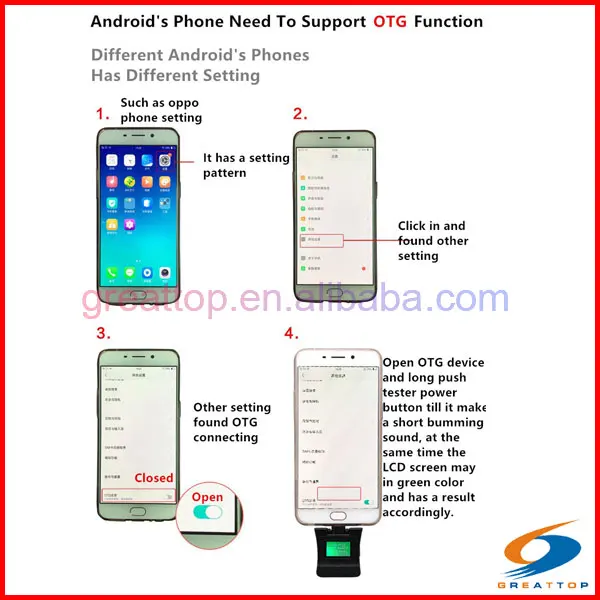

1. Please connect this product  to Apple or Android devices (Android device must support OTG function) , then unlock the devices ,  then  press switch of tester for a long time till Tester alert short buzzing, at the same time LCD screen will appear green  mactching indicator.

2.state "warm up"Number jump from 10 to 0 , it will finish preheating  procedure

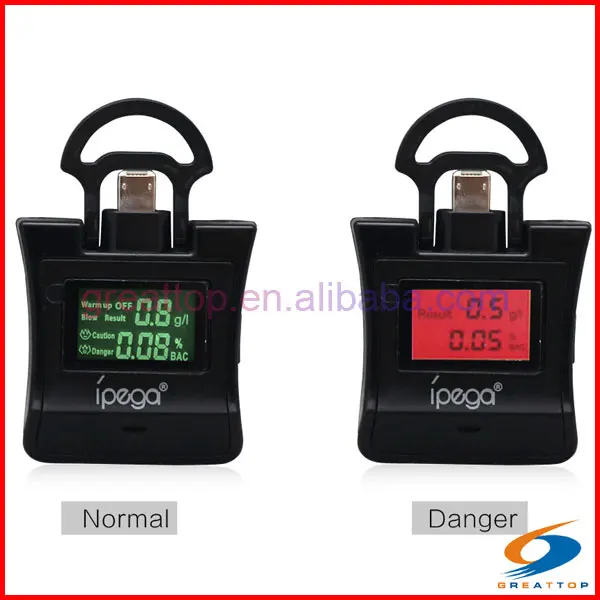

3. when blow 10 seconds countdown,pls let mouth close  to pore under tester, and blow to air hole and exhale into sensor for 3 to 5 seconds , after finishing Countdown ,display screen will show the test result.if there is no detection to alcohol or alcohol content normal,the LCD screen keep green

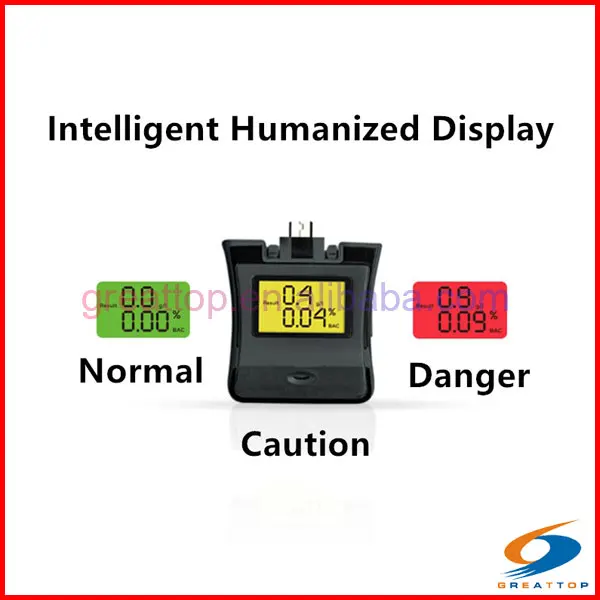

4.If test report can reach to  the scope below ,the LCD screen change to yellow and "Caution" will show .

√0.02% BAC(or 0.2g/l)to 0.05% BAC(or 0.5g/l)

5.If test report can reach to  the scope below,LCD screen change to red and "Danger"will show, the buzzer will alarm keep alert

√over & EQUAL 0.05% BAC (or 0.5g/l)

over & EQUAL 0.08% BAC (or 0.8g/l)

powered by Smart phone
temperature range5 ~ 40 oC
Digital display results% BAC / mg/l



Attention:

1.There often have some gas or sundries adhere to the tester sensor surface,when the tester from out of the packaging for the first time or long time no use,Need time to clean and preheating sensor.If possible, users should press several times power switch key as soon as possible

2.Be suggested to measurement after 20 minutes later of smoking, drinking and eating.

3.It would be best to let the test time pitch last test more than 3 minutes in order to make the test results more accurately

4.Avoiding to use in a strong wind or at the most polluted environment

5.pls don't blow Cigarette Smoke , food or liquid into instrument, otherwise sensor detector will be damaged.

6.pls don't squeeze forcefully or smash this product

7.Do not drunk driving for the safety of yourself and others pls.
